4.4 Cookies, and session management

• Reload this page. What do you see?
• In TRUQA, when the user comes back later, do you really have to ask the user to enter the username again? What if your application displays the username in 'SignIn' box, which was used right before?
Isn't it more user friendly?
• How to display a greeting message with a specific username, like 'Good morning, Dave!'?
• When the user leaves TRUQA without 'Sign Out' and he/she comes back, does your application have to ask him/her to sign in again?

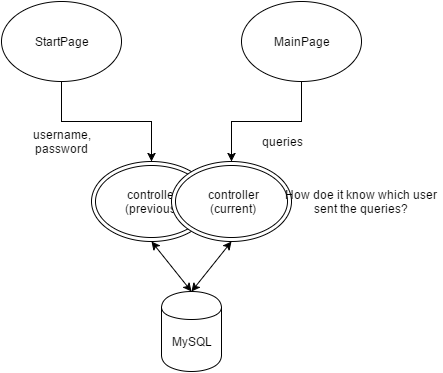

• Once the user enters the valid username and password, the TRUQA controller will display the MainPage. The user will send new inputs to the controller. How does the controller know who sent the inputs from the MainPage? What if someone else sends the similar inputs, that is used in the MainPage, without proper SignIn? You should not forget that the server-side programs run only one time, not continually. What if someone accesses the MainPage directly?
•
• You may need to leave data in the client side and in the server side too.
• What do you have to do?

• What are cookies used for?
• Where are cookies stored?
• When are cookies sent? To whom?
• Is there any security issue?
• What are thirty-party cookies?
• Is there any privacy concern?
• What are authentication cookies?

• Which side sets a cookie?
• Where is the cookie stored?
• Which side retrieves the cookie?
• Are cookies automatically sent?

• In general, yes, but not all.
• Those cookies, that are destroyed when the browser is closed, are called session cookies.
• Session cookies are set with 0 expiration - setcookie($name, $value, 0);

• Which function is used to create a cookie?
• How to set the expiration time of the cookie? When are cookies destroyed? When the browser is closed?
• What if the third argument 'expire' is zero? There are two types of cookies.
  • Session cookies with 'expire' of zero - These cookies are destroyed when the browser is closed.
  • Persistent cookies - Destroyed at the set date and time.
• How to restrict the accessibility to only my application, not to all in the same server computer system?
  • Isn't this important for TRUQA?
  • How to obtain the url name in PHP?

    echo "http://".$_SERVER['HTTP_HOST'].$_SERVER['SCRIPT_NAME'];


  • How to obtain the current directory name in PHP?

    echo getcwd();


• Which super global array is used to retrieve cookies?
• How to modify a cookie value?
• How to display a welcome message when the user comes back?
• How to destroy a cookie?
• How to check if cookies are enabled?

<?php

/*
*   When controller.php is accessed for the first time
*/

if (empty($_POST['page'])) {
    $display_modal_window = 'none';
    include ('view_startpage.php');
    exit;
}

/*
*   When commands come from StartPage or MainPage
*/

require ('model.php');  // connect to MySQL database; functions to access DB tables

$page = $_POST['page'];
$command = $_POST['command'];

if ($page == 'StartPage')
{
    switch ($command) {
    case 'SignIn':
        $username = ????;
        $password = ????;
        // When the user is valid,
        if (is_valid(???, ???) {  // is_valid() is in model.php
            ???('username', $username, time() + 24 * 60 * 60);  // Set a cookie for a welcoming message on StartPage for the next visit
            include('view_mainpage.php');
        }
        // When invalid
        else {
            $display_modal_window = 'signin';
            $error_msg_username = '* Wrong username, or';
            $error_msg_password = '* Wrong password';
            include('view_startpage.php');
        }
        break;
    ...
    }
}

else if ($page == 'MainPage')
{
    ...
}

else {
    ...
}
?>

<div id='welcome-message' style='display:???'></div>
<script>
    <?php
        if (!empty($_???['username'])) {  // COOKIE super global array
            echo "document.getElementById('welcome-message').???? = 'Welcome back, " .
                $_???['username'] . "!';";
            echo "document.getElementById('welcome-message').???? = 'block';";

            // destroy the cookie
            ???('username', '', ????);
        }
    ?>
</script>

• How to check if the commands from MainPage were sent after the user authentication?
• Does MainPage always need to submit the username?
• ...

• Why is session tracking difficult with HTTP?
• Where does PHP store the session data? In the client, or in the server?
• How to distinguish different session data?
• Is the session id stored in the server or in the client?
• How to create/obtain the session id?
• Idea 1: In the MainPage of TRUQA, do you have to keep sending the username and the password whenever any user input is submitted?
  Yes, but inconvenient. Even a third party can send the same username and data.
• Idea 2: Can you use cookies instead of session data?
  Maybe with some other additional information. But those cookies must be destroyed when the user signs out, or when there is no user activity for a certain period of time.
• Idea 3: Can you keep session data in the server?
  Yes.

• How to start a session?
• What does session_start() do? The return value of this function is TRUE or FALSE.
• How to store/retrieve a session variable?
• How to destroy a session completely?

• Valid SignIn

• Sign out - How does the controller know it?
• Timeout - How does the controller know it? Is it possible that the controller can check any user activity such that mouse movement?
• When the window is closed - How to know the window is closed?
• Timer in Controller?

<?php

/*
*   When controller.php is accessed for the first time
*/

if (empty($_POST['page'])) {
    $display_modal_window = 'none';
    include ('view_startpage.php');
    exit;
}

/*
*   When commands come from StartPage or MainPage
*/

require ('model.php');  // connect to MySQL database; functions to access DB tables

$page = $_POST['page'];
$command = $_POST['command'];

if ($page == 'StartPage')
{
    switch ($command) {
    case 'SignIn':
        $username = ???;
        $password = ???;
        // When the user is valid,
        if (is_valid(???, ???) {  // is_valid() is in model.php
            setcookie('username', $username, time() + 24 * 60 * 60);  // Set a cookie for a welcoming message on StartPage for the next visit
            session_start();
            $_SESSION['signedin'] = 'YES';  // session variable - for commands coming from MainPage
            ????['username'] = $username;  // session variable - for command coming from MainPage
            include('view_mainpage.php');
        }
        // When invalid
        else {
            $display_modal_window = 'signin';
            $error_msg_username = '* Wrong username, or';
            $error_msg_password = '* Wrong password';
            include('view_startpage.php');
        }
        break;
    ...
    }
}

else if ($page == 'MainPage')
{
    session_start();  // in order to access session variables

    // What if a user used MainPage without going through the user authentication process?
    if (!isset($_SESSION['signedin'])) {
        $display_modal_window = 'none';
        include ('view_startpage.php');
        exit;
    }

    $username = $_SESSION['username'];

    switch ($command) {
    case 'SignOut':  // 'SignOut' menu item, or timeout
        session_unset();
        session_destroy();  // It does not unset session variables. session_unset() is needed.
        $display_modal_window = 'none';
        include ('view_startpage.php');
        break;
    case 'SearchQestions':  // It uses $username.
        ...;
        break;
    ...
    }
}

else {
    ...
}
?>

<?php

// session_start();  // Session is started in controller.php before mainpage.php is included.

if (empty($_SESSION['signedin'])) {
    $display_modal_window = 'none';
    include('view_startpage.php');
    exit;
}
?>
...

• Any good idea?
  No typing and no mouse movement for a certain time of period; or when the application window is closed
• How to implement?
  • Timers - window.setInterval(), window.setTimeout()
  • Events - 'mousemove', 'keydown', 'unload'
  • On window, not document
  • Here is an example of view_mainpage.php.

    <script>
        ...
        var timer = setTimeout(timeout, 10 * 60 * 1000);
        window.addEventListener('mousemove', event_listener_mousemove_or_keydown);  // mousemove on the screen
        window.addEventListener(???, ???);  // for keyboard action
        window.addEventListener('???', function() {  // when the window is closed
            ????  // ...
        });
        function event_listener_mousemove_or_keydown() {
            clearTimeout(???);
            timer = setTimeout(timeout, 10 * 60 * 1000);
        }
        function timeout() {
            ????  // send the 'SignOut' command to the controller
        }
        ...
    </script>


  • Trial 2: Let's try to capture the user inactivity.
    <script> var timer = ???(timeout, 10 * 1000); window.???(???, ???); // Register an event handler for 'mousemove' function event_listener_mousemove() { ????; // Clear timeout timer = ????; // Reregister ... } function timeout() { window.???('mousemove', ???); // Remove the event listener alert('Wake uuuuuuuuuuuuP'); } </script> Submit the code to the server to execute the code


• In timeout(), send 'SignOut' to controller.php using an invisible form. In view_mainpage.php,

  <form id='form-signout' method='POST' action='???' ????>
      <input type='hidden' name='page' value='???'>
      <input type='hidden' name='???' value='SignOut'>
  </form>

  <script>
      ...
      function timeout() {
          ...
          document.getElementById('form-signout').???();  // submit the form with the 'SignOut' command
      }
      ...
  </script>


• Trial 3: Let's try to send the 'SignOut' command.
  <form id='tr3-form-signout' method='POST' action='//cs.tru.ca/~mlee/comp3540/Software/test_display_inputs.php' ????> <input type='hidden' name='page' value='MainPage'> <input type='hidden' ???='???' ???='SignOut'> </form> <script> var timer2 = setTimeout(timeout, 10 * 1000); window.addEventListener('mousemove', event_listener_mousemove); // Register an event listener for 'mousemove' function event_listener_mousemove() { ???? // Clear timeout ???? // Reregister ... } function timeout() { ???? // Clear timeout ???? // Remove the event listener for 'mousemove' ???? // submit the form with the 'SignOut' command } </script> Submit the code to the server to execute the code
